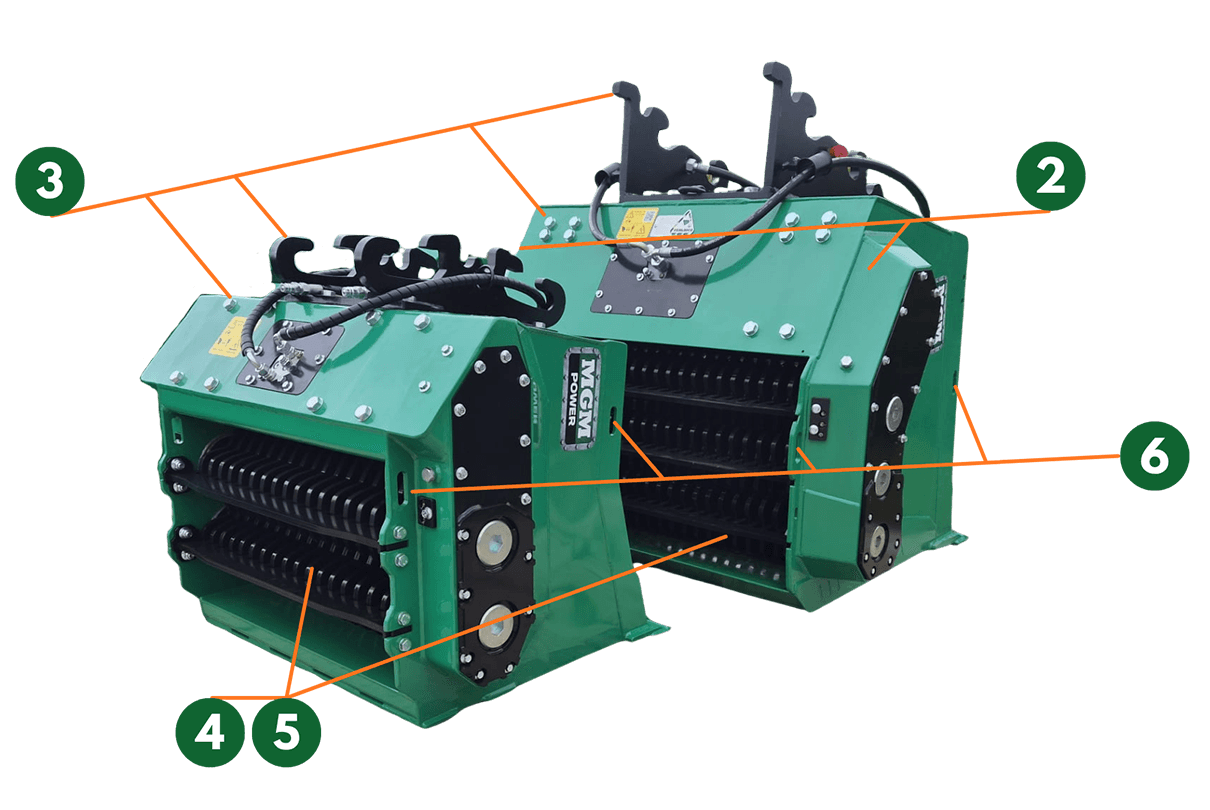

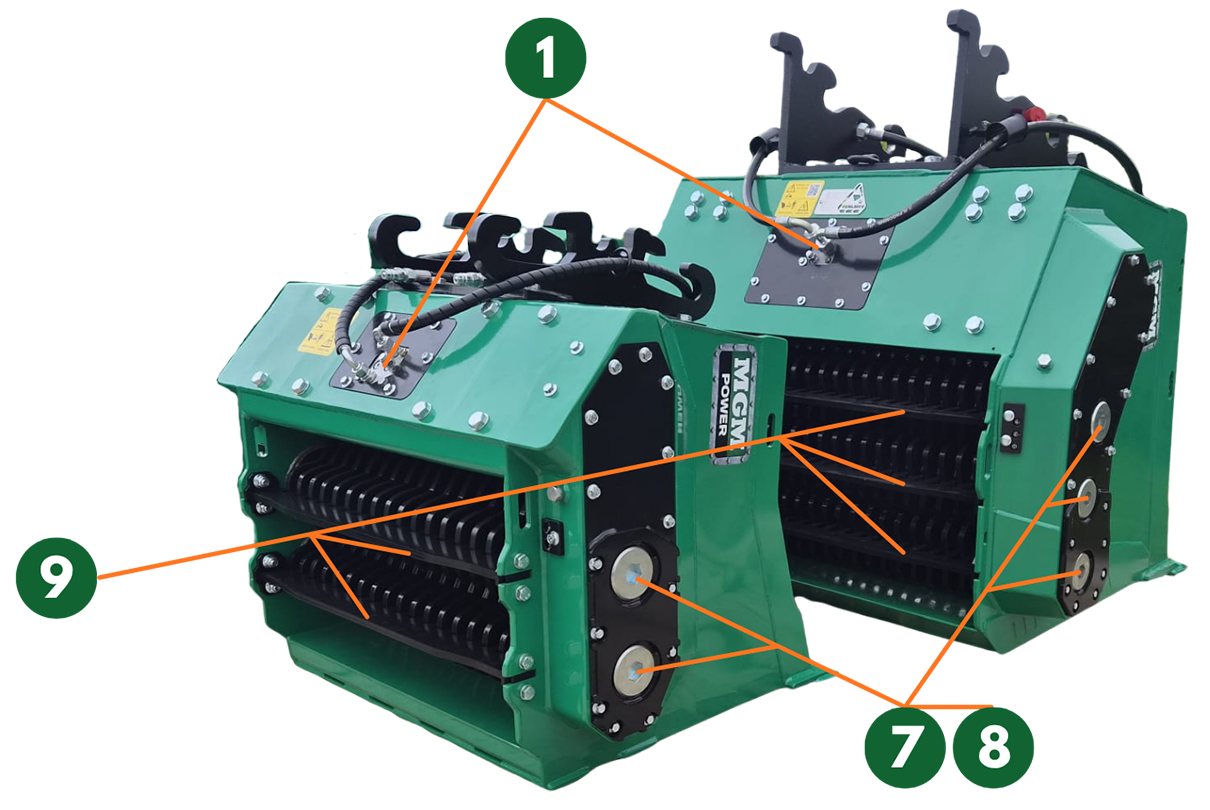

Construction of the
MGM Power star screening bucket

Application examples for MGM Power star screening buckets

Equipped with screening rotors
MGM Power star screening buckets with screening rotors are developed for efficiently separating reusable material from unwanted coarse fractions.
Suitable for applications including:

• Removing stones, branches, roots, turf and waste from reusable soil or topsoil.
• Screening and simultaneously mixing compost, sand, substrates and other raw materials.
• Screening coarse stones from excavated soil to create a reusable fraction for applications such as road foundations or backfilling.
• Separating stones and rubble from mixed soil after demolition and earthmoving work.
• Pre-processing lumpy soil before it enters a stationary screening installation, increasing throughput and reducing blockages.
• Cleaning compost and biomass by separating plastic, branches and other coarse contaminants.

Equipped with mixing and crushing rotors
With mixing and crushing rotors, a single machine can be used for mixing, crushing, aerating and preparing different materials.
Suitable for applications including:

• Mixing lime, binders or other additives into soil to dry or stabilise the material.
• Mixing soil with compost, sand, substrates or other soil types, while breaking down lumps at the same time.
• Aerating, turning and loosening compost, biomass and organic waste.
• Separating branches, roots and other parts that cannot be reduced any further.
• Pre-processing lumpy soil for a subsequent screening stage, allowing the screening installation to be loaded more evenly and efficiently.

Thanks to the different rotor configurations and the MGM Rotor Quick-Change system, one star screening bucket can easily be adapted to different materials, required fractions and applications.

Hardox stars for maximum service life

The stars of the MGM Power star screening buckets are manufactured from high-quality Hardox wear-resistant steel.
This material is known for its exceptional wear resistance and high strength, allowing the rotors to continue performing for long periods even under the most demanding conditions.
Thanks to their robust construction, the stars are able to withstand intensive loads when processing soil, compost, rubble, biomass and other materials.

If wear occurs after prolonged use, the aggressive rotor blades can easily be rebuilt by welding.
This significantly extends their service life and keeps maintenance costs low.
In combination with the MGM Rotor Quick-Change system, complete rotor configurations can also be changed quickly for a different application or required screening fraction.
This ensures maximum availability, minimal downtime and a low Total Cost of Ownership (TCO).

S – Standard Star Rotor

The S rotor is the most versatile rotor in the MGM range.
Developed for screening soil, sand, compost and recycling materials while achieving high capacity, even under moist conditions.

Q – Quality Star Rotor

The Q rotor is developed for applications where the quality of the end product is the main priority.
Thanks to the gentle material movement, the structure of the material is better preserved and unnecessary crushing is prevented.

X – Mix Rotor

The X rotor combines screening, mixing and aerating in a single operation.
Ideal for homogenising soil, compost and other materials while simultaneously breaking up lumps.

B – Block Star Rotor

The B rotor is specially developed for processing organic and moist materials.
Thanks to its open rotor construction, throughput remains high even with wet compost, biomass and clay soils.

K – Chopping Star Rotor

The K rotor is designed for opening, reducing and loosening tough materials such as turf, clay, peat, compost and filter cake. This optimally prepares the material for further processing or composting.

C – Crush Star Rotor

The C rotor is developed for reducing easily breakable materials during screening.
This makes the rotor highly suitable for applications such as reducing mussel shells, digestate, filter cake and other organic or mineral residual streams, while maintaining a high processing capacity.

MGM Power – The Power to lead

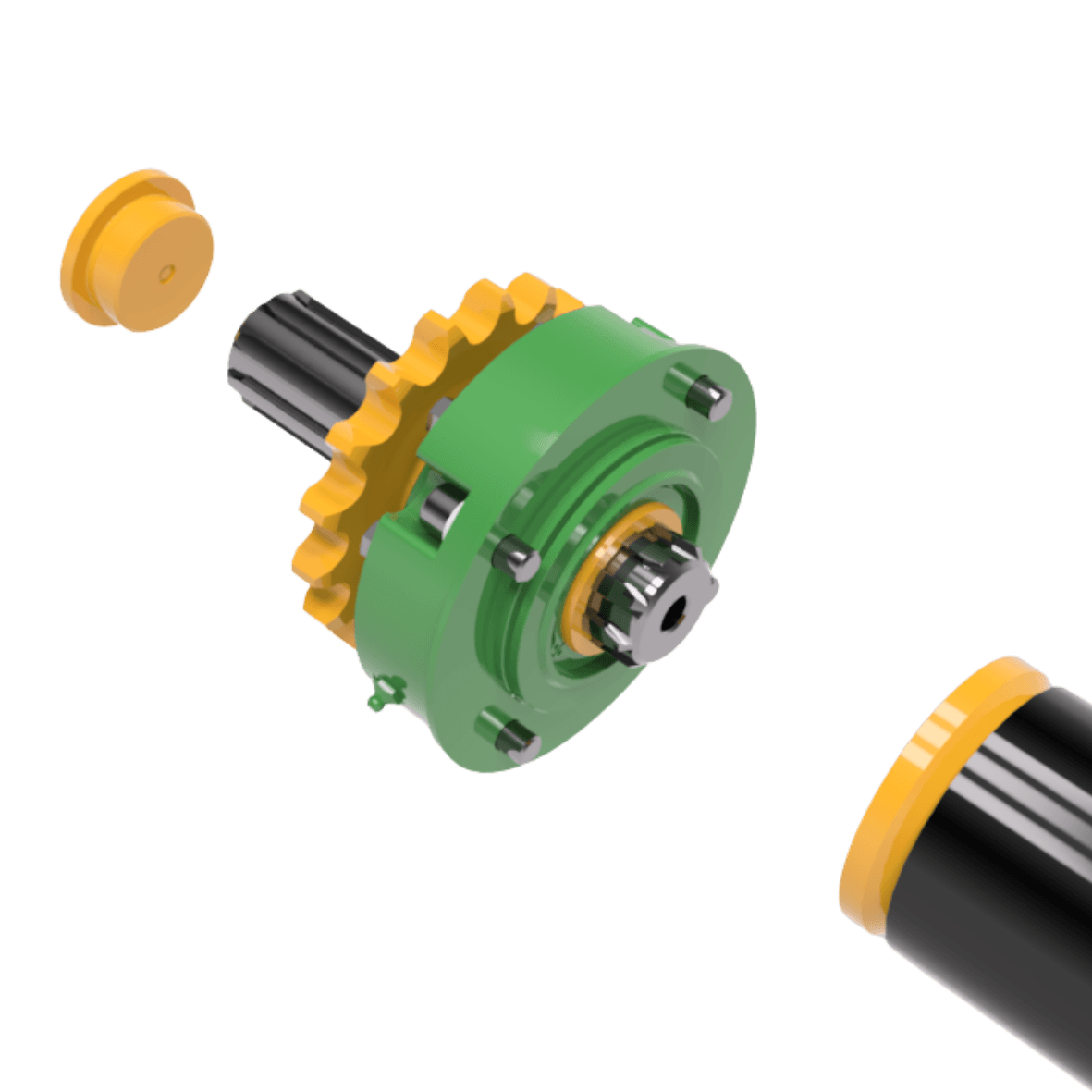

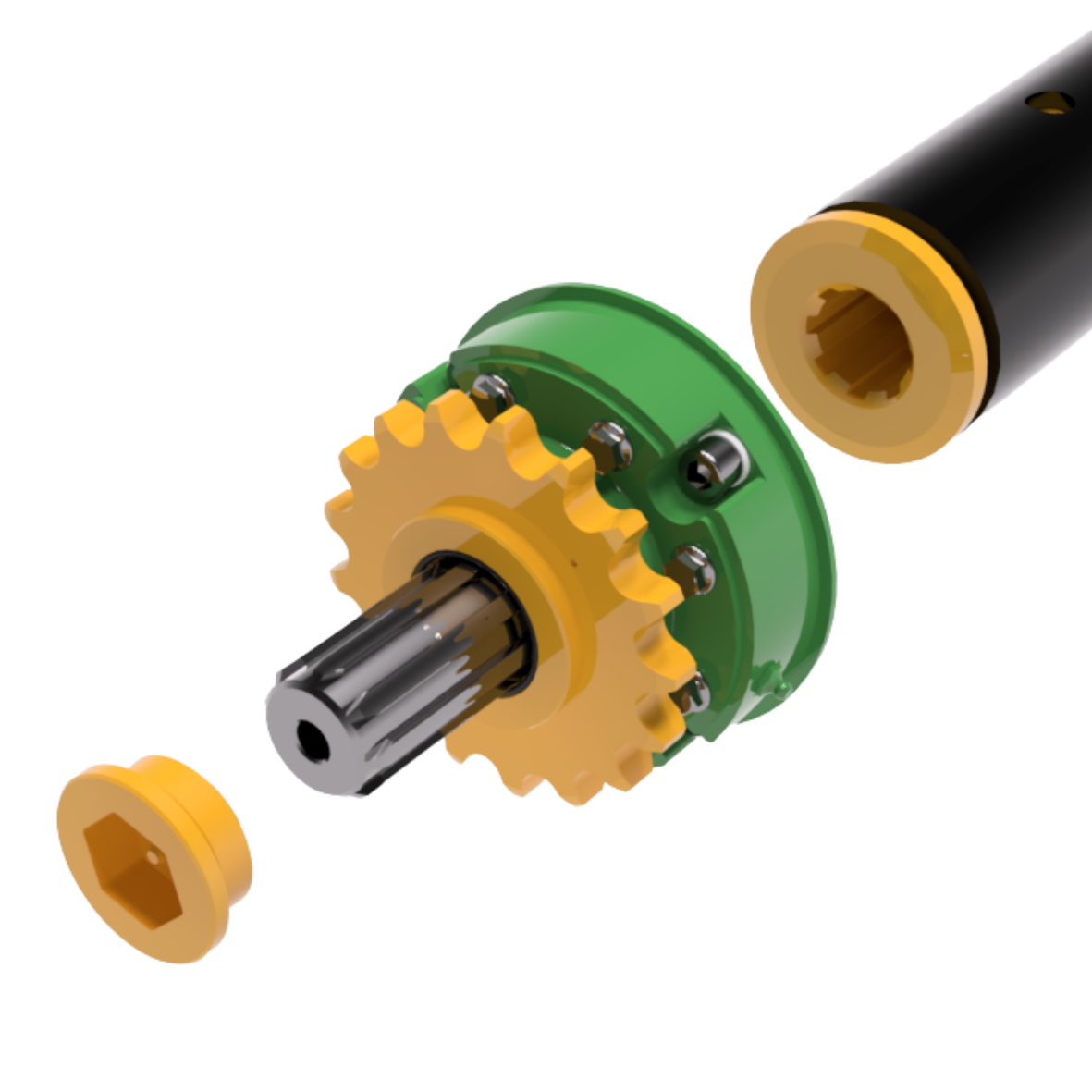

Innovative MGM Rotor Quick-Change system

The Rotor Quick-Change system developed by MGM Power makes it possible to change complete rotor sets quickly and easily. This allows the same star screening bucket to be adapted to another application or required screening fraction within a short period of time, without dismantling the complete drive system or bearings.

The unique coupling system stands out because the fit remains virtually wear-free, even after many rotor changes. As a result, the rotors retain their precise alignment and the machine continues to perform reliably for many years. In addition, the system is designed so that no screening surface is lost to coupling components or adapters, allowing the full rotor width to remain available for maximum capacity.

Large bucket capacity for maximum productivity

Spend less time handling material, spend more time screening
High productivity is not determined solely by the rotors or drive system. The bucket capacity of the star screening bucket is at least as important. The larger the bucket capacity, the less often the operator has to scoop up and discharge material. As a result, a greater proportion of working time is actually spent screening material, significantly increasing total production.

When developing the MGM star screening buckets, great attention was therefore paid to the balance between bucket capacity, rotor surface and carrier machine. The machine can be filled optimally without restricting material flow. This allows the material to be processed evenly across the full rotor width and ensures that the available screening capacity is utilised to the maximum.

A large bucket capacity not only provides higher capacity per cycle, but also reduces excavator movements, lowers fuel consumption and reduces wear on both the carrier machine and the attachment. It is precisely this combination of efficient material flow, large bucket capacity and optimal use of the screening surface that makes MGM star screening buckets a productive solution for professional daily use.

An investment for the future

MGM Power star screening buckets are developed to grow with your operations for many years. Thanks to the extensive range of 15 different models, the various rotor configurations and the MGM Rotor Quick-Change system, the machine can easily be adapted to new applications or changing working conditions.

Whether you want to screen soil, process compost, aerate biomass, separate construction and demolition waste or process industrial residual streams, together we determine the right combination of machine and rotor. If your operations change in the future, you do not necessarily need to purchase a new star screening bucket. In many cases, your existing MGM machine can easily be adapted to a new application.

This means you are not only investing in a high-quality star screening bucket, but in a flexible solution that will continue to meet the needs of your business and your operations in the future. This makes an MGM Power star screening bucket a sustainable investment with a high residual value and a low Total Cost of Ownership.
