MGM VM 4-135

Star Screening Buckets

MGM VM 4-135

Robust screening bucket for heavy-duty applications such as demolition work, landscaping and recycling, with optimal efficiency in separating soil, stones and materials.

  • Four rotors for powerful, even screening
  • High capacity in mid-sized applications
  • Strong with heavier material flows
  • Versatile with different rotor options
  • Efficient for sustainable on-site reuse
  • Excavator

    20.0 - 28.0 tonnage

  • Wheelloader

    - tonnage

Do you need help or advice?

Contact us without obligation

+31 418 584163

  • Bucket volume

    1400 l

  • Sieve surface

    1,35 m²

  • Hydraulic oil flow

    140-180 l/min

  • Standard weight

    1600 kg

Product specifications

Model

VM 4-135

Height

1500 mm

Width

1730 mm

Length

1300 mm

Indication capacity

50-170 m³ p/u

Binnenwerken

C-Rotor (Crushing blade)

C-Rotor (Crushing blade)

Designed for reducing materials such as glass,
gypsum, ceramics, and other soft rocks. Also
suitable for further size reduction of compost,
organic waste, or other material flows.

CH-Rotor (Crushing Hammer blade)

CH-Rotor (Crushing Hammer blade)

This coarse version of the crushing blade is
equipped with perpendicular hammer plates.
Suitable for rapidly reducing semi-hard or
clumped materials.

K-Rotor (Cutting blade)

K-Rotor (Cutting blade)

The chopping drum is more aggressive than
the standard crushing blade and operates in
both directions. It efficiently pulverizes
clumped materials into a fine, dust-like
consistency.

Q-Rotor (Qualitie soft zeefblad)

Q-Rotor (Qualitie soft zeefblad)

This rotor is ideal for screening applications
where minimal damage or breakage is desired.
For example, when separating invasive plants,
it is important to keep them intact.

S-Rotor (Standard screening blade)

S-Rotor (Standard screening blade)

Suitable for screening stones or hard residual
materials from top layers on construction and
demolition sites, as well as compost and
garden soil. This rotor is known as the “all-
rounder.

X-Rotor (Mixrotor)

X-Rotor (Mixrotor)

Specifically designed for soil improvement by
mixing clay or other materials with binders or
soil types. Its aggressive action breaks down
hard clumps effectively.

About MGM VM 4-135

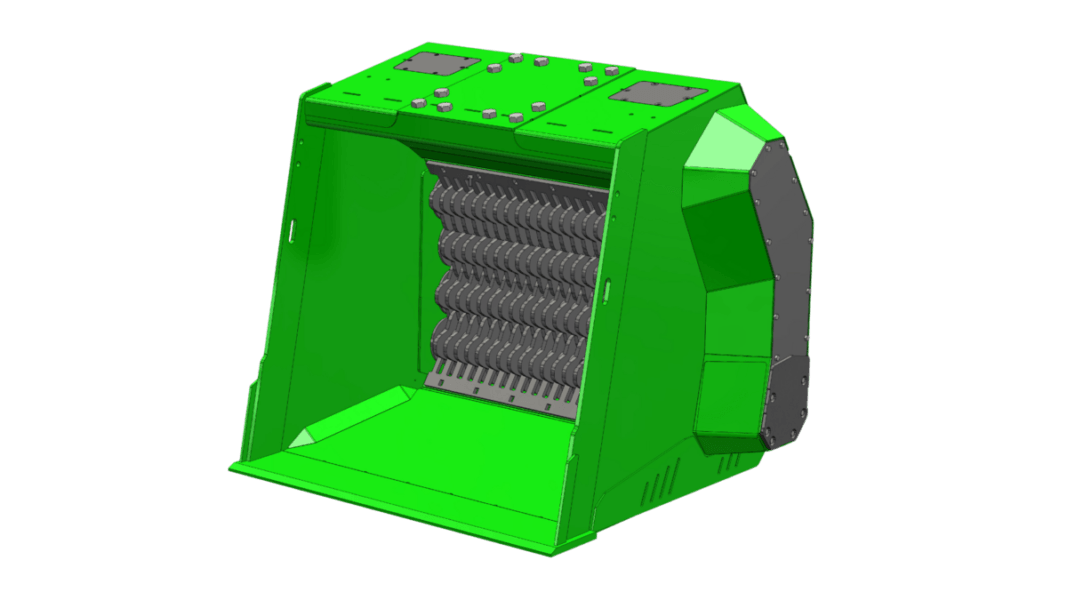

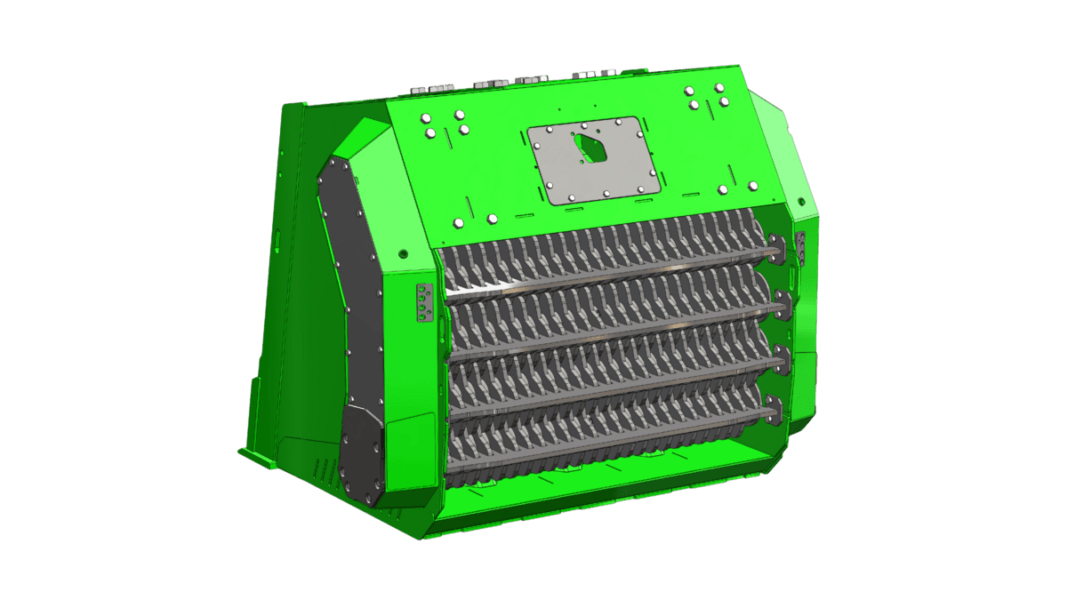

The MGM VM 4-135 is a robust screening bucket, focused on delivering the highest performance for excavators from 20–28 tons. This screening bucket is designed for maximum efficiency in separating soil, stones and other materials, and is ideal for heavy-duty applications such as demolition work, landscaping and recycling. However, if you are looking for a combination for a wheel loader, the MGM VM 3-195 is the best fit.
